General
| Series Name | E |
| Nominal Cooling Capacity (tonnage) | 1.5 Tr |
| Star Rating | 3 star |
| (Rated) Voltage/Frequency/Phase | 230 V / 50Hz / Single |
| Cooling Capacity (Watt)(Min~Max) | 5275 (2396.1 ~ 5899) |
| Cooling Capacity (BTU/hr) | 17999 |
| Rated Cooling Capacity (50% Load) (Watt) | 2638 |
| Cooling Rated Power Input (Watt) | 1710 |
| Cooling Capacity (BTU/hr)(Min~Max) | 17999 (8175 ~ 20127) |
| Cooling Power Input (50% Load) (Watt) | 630 |
| ISEER | 3.9 |
| Electricity Consumed In 1600 Hours. (Units/Year) | 1046.9 |
| Nominal Current (Cooling)(Amps) | 7.432 |
| Air Flow Volume (Wet CFM) (High / Medium / Low) | 630/470/410/350 |
| Noise Level Indoor (dB(a)) (High/ Medium/ Low) | 54/48/44/40 |
| Moisture Removal (Liters/Hour) | 1.5 |
| Compressor Type | Inverter Rotary |
| Acoustic Jacket On Compressor | Yes |
| Refrigerant Quantity(Kg) | 0.510 |
| Ambient Temp (Cooling) (degree C) | 52 |
| Remote | 5 in 1 LCD Remote |
| Night Glow Function On Remote Buttons | Yes |
| Net IDU(Product) Dimension (mm) | 940x235x315 (WxDxH) mm |
| Input Power Supply | IDU |
| Net Weight IDU (kg) | 11 |
| Net ODU Dimensions (Width X Depth X Height) (mm) | 811x298x596 |
| Net Weight ODU (kg) | 24 |
| Noise Level Outdoor (dB(a)) | 62 |
| Gross IDU Weight (kg) | 14 |
| Gross ODU Weight (kg) | 29 |
| Suction Tube Size Outer Diameter Inch (mm) | 1/2″ |
| Liquid Tube Size Outer Diameter Inch (mm) | 1/4″ (6.35mm) |
| Max Piping Capability Total (meter) | 15 |
| Max Piping Capability Vertical (meter) | 10 |
| Refrigerant Additional Charge Beyond 4M (g/m) | 15 |
| Power Supply to IDU Source(Core/Gauge) | 1.5 sq. mm, 3 core |
| Remote Battery Type | AAA |

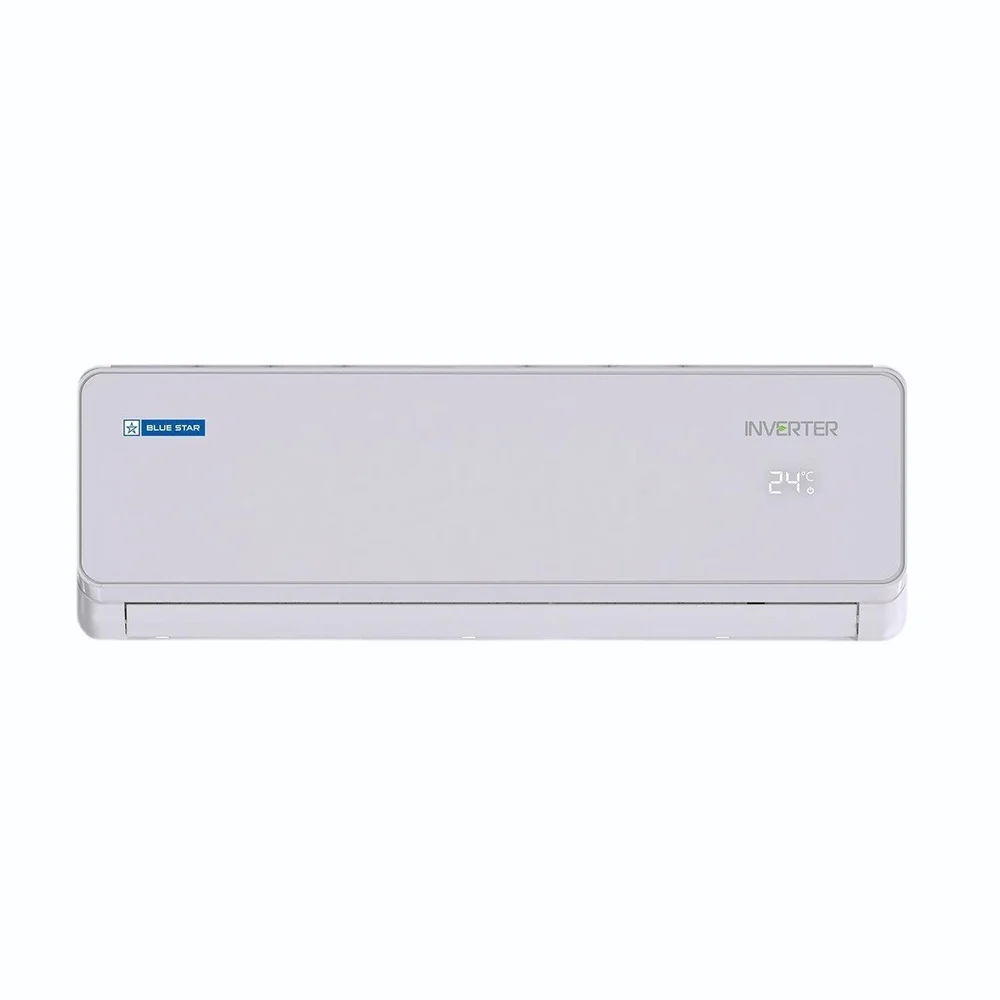

| Product Title | IC318ENU- Inverter Split AC 1.5 Tr 3 Star |
| Features Refrigerant | R32 |
| Features Condenser Type | 100% Copper |
| Air Conditioner Technology | Inverter |
| Country of Origin | India |
| Address of Manufacturer | BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
Warranty
| Features Warranty | Life-time Warranty on Inverter Compressor |
| Features Additional Warranty Option | 1+4 Year Extended Warranty |
